ATTACHMENTS - Piling Hammers

Model

Piling Hammers

Description

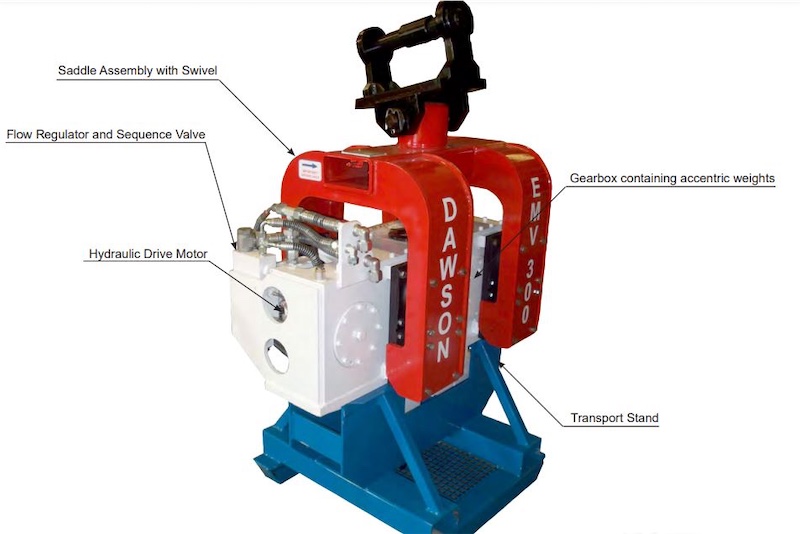

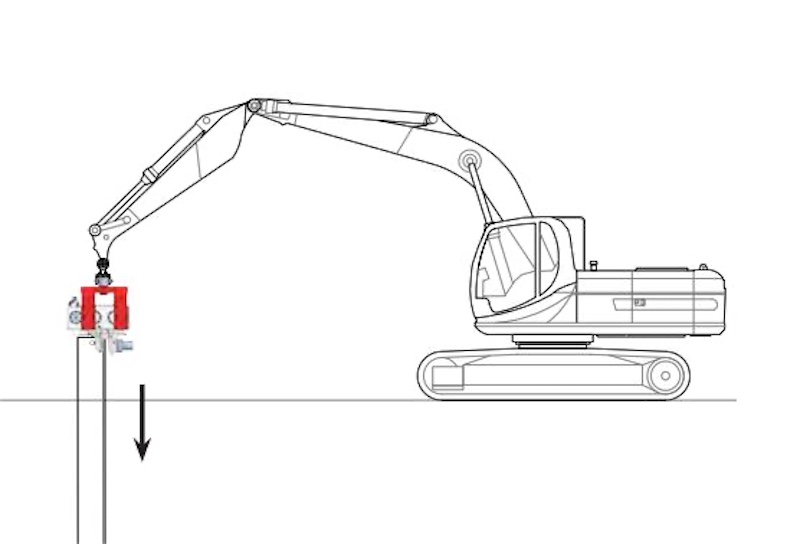

Built to sure a variety of our excavators, the Dawson EMV300 Piling Hammers are mounted excavator vibrators that are used when doing piling works. They have a frequency of 2,400rpm and have a clamp force of 36 tonnes. The EMV is particularly effective for its size and weight because it is able to utilise the crowd force available from the excavator to add further push force to the pile. Furthermore, the EMV has a built-in flow regulator that limits the oil flow rate supplied to the drive motor so that the gearbox can not be run too fast. This is essential to prevent excessive bearing loads and correct performance of the unit.

Specifications

SPECIFICATIONS EMV300
UNITS METRIC US
STATIC MOMENT 4.6 kgm 400 in lbs
FREQUENCY 2400 rpm 2400 rpm
CENTRIFUGAL FORCE 300 KN 67,420 lbs.F
AMPLITUDE 14.7 mm 0.58 in
MIN. HYDRAULIC FLOW RATE 130 L/min 35 gpm
MAX. HYDRAULIC FLOW RATE 250 L/min 67 gpm
MAX. HYDRAULIC PRESSURE 350 bar 5,076 psi
MIN. HYDRAULIC POWER 60 kW 80 hp
DYNAMIC MASS 625 kg 1,380 lbs
TOTAL MASS 965 kg 2,123 lbs
MAX. PILE MASS 800 kg 1,760 lbs
MAX. PUSH/PULL FORCE 15,000 kg 33,000 lbs
CLAMP FORCE 36 tonne 36 tonne
TYPICAL EXCAVATOR WEIGHT 12 - 35 tonne 13 - 39 ton
EMV WEIGHT WITH OIL 975Kg 2,145 lbs
EMV STAND 112Kg 247 lbs
EMV70 ADAPTOR BRACKET 33Kg 73 lbs
QUICK HITCH - 4586 100Kg 220 lbs
TRANSPORT WEIGHT 1,220Kg 2,685 lbs
